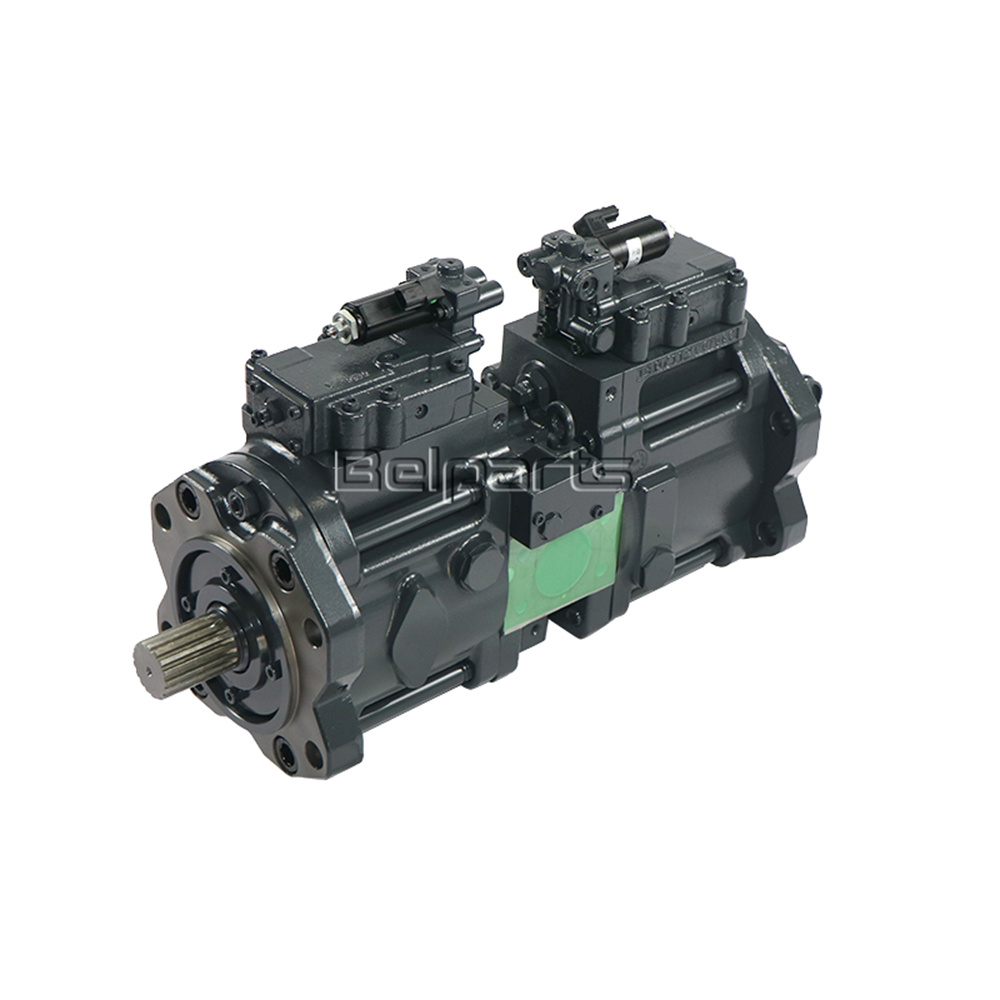

    Excavator Main Pump EC230B EC240 EC240B Hydraulic Pump SA 1142-00531 SA 8230-14650 VOE 14343114

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : EC230B EC240 EC240B
    Price : Negotiable price
    Payment Terms : T/T, Paypal and Trade Assurance
    Supply Ability : 1000pieces
    Delivery Time : 1-5days
    • Product Details
    • Company Profile

    Excavator Main Pump EC230B EC240 EC240B Hydraulic Pump SA 1142-00531 SA 8230-14650 VOE 14343114

    Belparts excavator main pump EC230B EC240 EC240B hydraulic pump SA 1142-00531 SA 8230-14650 VOE 14343114


    Quick Detail of Excavator Hydraulic Pump
    Product Name:Excavator Hydraulic Pump
    Brand:Belparts
    Machine model:EC230B EC240 EC240B
    Packing Size:84*38*49
    Part number: SA 1142-00531 SA 8230-14650 VOE 14343114
    Pressure:Standard, High Pressure

    Specifiions Of Excavator Hydraulic Pump

    Product NameExcavator Hydraulic Pump
    BrandBelparts
    Machine modelEC230B EC240 EC240B
    Packing Size84*38*49
    Part numberSA 1142-00531 SA 8230-14650 VOE 14343114
    PressureStandard, High Pressure

    #Part NoPart NameQty.Price request
    SA 1142-00531Pump more1
    1SA 8230-14650Piston2
    2SA 14500003Piston9
    3SA 14500002Seat9
    4SA 8230-28580Cylinder1
    5SA 8230-28560Block1
    6SA 14500001Plate1
    7SA 8230-28590Cylinder1
    8SA 8230-28560Block1
    9SA 14500000Plate1
    10SA 8230-09800Plate2
    11SA 8230-30540Plate1
    12SA 14500012Bushing1
    13SA 7223-00450Check valve more2
    14SA 7223-00500Seat1
    15SA 7223-00520Guard1
    16SA 9676-73200Ball more1
    17SA 7223-00460Check valve2
    18SA 7223-00500Seat1
    19SA 7223-00540Guard1
    20SA 9676-73200Ball more1
    21SA 8230-09020Valve more1
    22SA 8230-09100Shaft1
    23SA 8230-09070Shaft1
    24SA 8230-09660Coupling1
    25SA 8230-26610Roller Bearing more2
    26SA 8230-26700Needle Bearing more2
    27SA 8230-14530Spacer4
    28SA 8230-09370Plate2
    29SA 8230-09680Bushing more2
    30SA 8230-09710Spring18
    31SA 8230-09670Spacer2
    32SA 8230-21920Plate2
    33SA 8230-08940Support2
    34SA 8230-09350Cover1
    35SA 8230-08930Body1
    36SA 8230-08980Valve assembly1
    37SA 8230-09690Bolt8
    38SA 9016-10804Bolt more4
    39SA 9415-11021Plug more3
    40SA 9415-11051Plug more4
    41SA 7242-11040Plug more21
    42SA 8230-09790Pin2
    43SA 8230-09320Pin1
    44SA 7223-00570Pin1
    45SA 8230-09250Piston2
    46SA 8230-09640Stop2
    47SA 8230-09650Stop2
    48SA 9511-22035O-ring more2
    49SA 9511-22095O-ring more1
    50SA 9511-22145O-ring more4
    51SA 9511-12008O-ring more16
    52SA 9511-12011O-ring more8
    53SA 9511-12024O-ring more4
    54SA 9511-12018O-ring more2
    55SA 8230-26900Seal more1
    56SA 9566-10180Ring2
    57SA 9566-20350Ring2
    58SA 8230-25620Nut2
    59SA 9111-12000Nut more2
    60SA 8230-25980Ring2
    61SA 8230-26430Plate2
    62SA 7223-00660Spring Pin4
    63SA 8230-25450Eye Bolt2
    64SA 8230-26780Bolt2
    65SA 8230-09700Bolt2
    100SA 8148-13080Sealing Kit more1


    Model

    Nominal
    displacement
    (ml/r)

    Fore pump
    hind pump

    Pressure(MPa

    Speed(r/min)

    Volumetric
    efficiency
    (≥%)

    Fore pump
    hind pump
    L1L2LhD
    Weight
    (kg
    OvalRectangk
    Inlet

    Fore pump
    hind pump

    Outlet

    Fore pump,
    hind pumg

    Rated

    Max

    Min

    Rated

    Max
    CBOT-E563/F410-*F**63/1016/2020/258002000250092/9177.5140.5278152335/2325/2011.2
    CBOT-E563/F416-*F**63/16143.528511.4
    CBOT-E563/F420-*F**63/20600145.528935/2611.6
    CBOT-E563/F425-*F**63/25148.529511.9
    CBOT-E563/F432-*F**63/3292/92152.530312.1
    CBOT-F550/F410-*F**50/1020/2025/258002500300092/917313626935/2310.1
    CBOT-F550/F416-*F**50/1613927510.3
    CBOT-F550/F420-*F**50/2060014128035/2610.5
    CBOT-F550/F425-*F**50 2514428610.9
    CBOT-F550/F432-*F**50 3292/9214829411.1
    CBOT-F540/F410-*F**40/1080092/9169.5132.526235/2320/209
    CBOT-F540/F416-*F**40/16135.52689.3
    CBOT-F540/F420-*F**40 20600137.527435/269.4
    CBOT-F540/F425-*F**140.52799.7
    CBOT-F540/F432-*F**4092/92144.528710
    CBOT-F532/F410-*F*3280092/916713025730/238
    CBOT-F532/F416-*F**32/161332638.2
    CBOT-F532/F420-*F**32 2060013526830/268.4
    CBOT-F532/F425-*F**32/251382748.7
    CBOT-F532/F432-*F**32/3292/921422828.9
    CBOT-F525/F410-*F*25/1080092/9164.5127.525225/237.1
    CBOT-F525/F416-*F**130.52587.4
    CBOT-F525/F420-*F**600132.526325/267.7
    CBOTF525/5425-*F**135.52697.9
