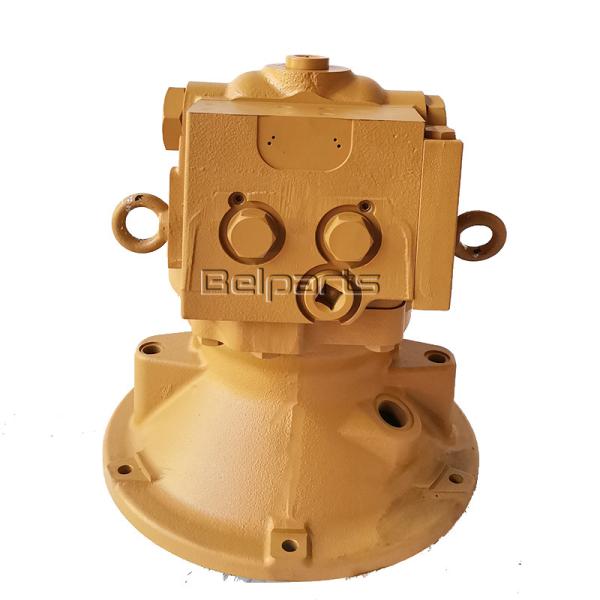

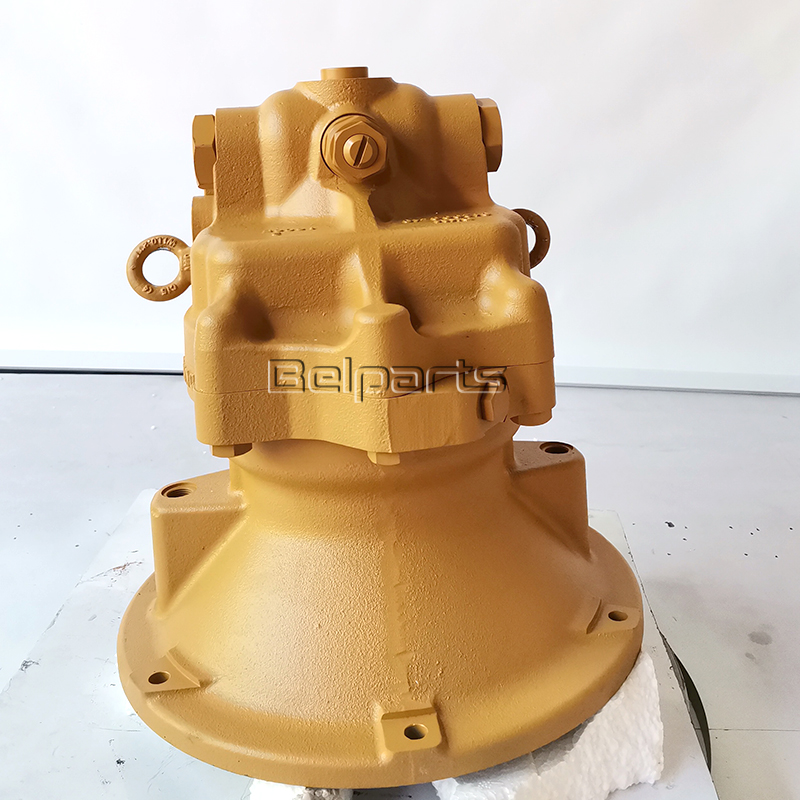

Product name | Hydraulic swing motor assy |
| Place of Origin: | China(mainland) |
| Model: | PC228US-8 |
| Part number: | 706-7G-01180 706-75-01170 |
| MOQ: | 1 PCS |
| Payment term: | T/T & Western Union.... |
| Delivery time: | Within 2 days after receiving the payment |
| Packing: | Standard exporting packing or as required |
Hydraulic Excavator
PC200-6-A;
PC200-6Z;
PC200CA-6-C1;
PC200CA-6;
PC200LC-6-A;
PC200LC-6Z;
PC210-6;
PC210LC-6;
PC220-6;
PC220-6Z;
PC220LC-6;
PC220LC-6Z;
PC228US-1T;
PC228US-2-KJ;
PC228US-2-US;
PC228USLC-1-NZ;
PC228USLC-1-US;
PC228USLC-2-KJ;
PC228USLC-2-US;
PC228UU-1-NZ;
PC230-6;
PC230LC-6
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|
| 1 |
(706-75-01170) | MOTOR ASS'Y | 1 | |
| 2 |
20Y-26-22270 | Ring | 1 | |
| 3 |
07042-30108 | PLUG,SEE FIG. K4010-63A0 | 1 | |
| 4 |
20Y-26-22210 | | 1 | |
| 5 |
20Y-26-22330 | Bearing | 1 | |
| 6 |
20Y-26-22340 | Bearing | 1 | |
| 7 |
20Y-26-22191 | Cover | 1 | |
| 8 |
01010-81045 | BOLT,(WITH WATER SEPARATOR TYPE) | 12 | |
| 9 |
01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 12 | |
| 10 |
20Y-26-22420 | Seal | 1 | |
| 11 |
20Y-26-21141 | SHAFT? 15 TEETH | 1 | |
| 12 |
20Y-26-22170 | Carrier | 1 | |
| 13 |
20Y-26-22141 | GEAR? 36 TEETH | 4 | |
| 14 |
20G-26-11240 | Bearing | 4 | |
| 15 |
20Y-27-21240 | WASHER,THRUST | 8 | |
| 16 |
20Y-26-22250 | Pin | 4 | |
| 17 |
20Y-27-21280 | Pin | 4 | |
| 18 |
20Y-26-21240 | Plate | 1 | |
| 19 |
112-32-11211 | BOLT? SHOE (Y0320-K1) | 1 | |
| 20 |
20Y-26-22150 | GEAR? 101 TEETH | 1 | |
| 21 |
20Y-26-22131 | GEAR? 27 TEETH | 1 | |
| 22 |
04064-07525 | RING, RETAINING | 1 | |
| 23 |
20Y-26-22220 | THRUST WASHER | 1 | |
| 24 |
20Y-26-22160 | Carrier | 1 | |
| 25 |
20Y-26-22120 | GEAR? 39 TEETH | 3 | |
| 26 |
20Y-26-21280 | Bearing | 3 | |
| 27 |
20Y-27-21240 | WASHER,THRUST | 6 | |
| 28 |
20Y-26-22240 | Pin | 3 | |
| 29 |
20Y-27-21280 | Pin | 3 | |
| 30 |
20Y-26-22110 | GEAR? 22 TEETH | 1 | |
| 31 |
20Y-26-22230 | THRUST WASHER | 1 | |
| 32 |
195-03-13241 | VALVE,WATER DRAIN | 1 | |
| 33 |
205-26-71620 | Tube | 1 | |
| 34 |
07281-00197 | CLAMP,(WITH PRE-FUEL FILTER) | 1 | |
| 35 |
01011-81465 | Bolt | 18 | |
| 36 |
01643-31445 | WASHER,(FOR QUICK SHIFT) (MITSUBISHI) | 18 | |
| 37 |
20Y-26-21340 | GAUGE | 1 | |
| 38 |
20Y-26-22260 | Filler | 1 | |
| 39 |
07000-15240 | O-RING,(F4350-60A0 -7 ) | 1 | |
| 39 |
07000-05240 | O-RING,(F2320-53A0 -4 ) | 1 | |
| 40 |
01010-82060 | BOLT,REAR | 12 | |
| 41 |
01643-32060 | FLAT WASHER - M20 (HARDENED) | 12 |
