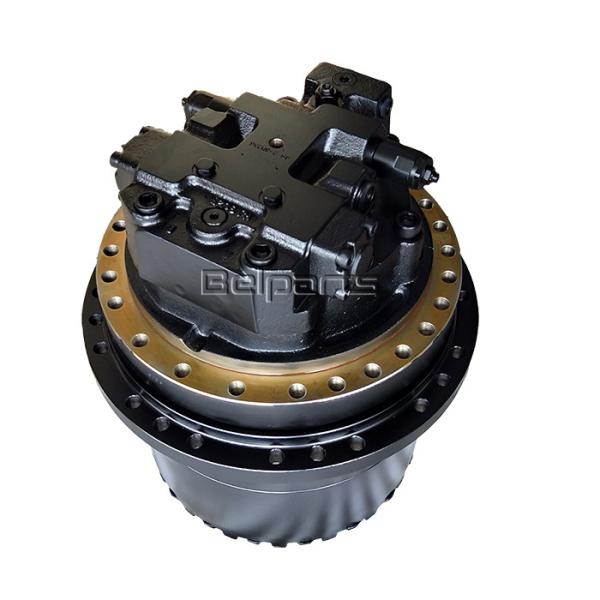

R360 31NA-40020 Final Drive Motor Final Drive Assy Travel Motor Assy

GZ Yuexiang Engineering Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap R360 31NA-40020 Final Drive Motor Final Drive Assy Travel Motor Assy from wholesalers

    Buy cheap R360 31NA-40020 Final Drive Motor Final Drive Assy Travel Motor Assy from wholesalers
    • Buy cheap R360 31NA-40020 Final Drive Motor Final Drive Assy Travel Motor Assy from wholesalers
    • Buy cheap R360 31NA-40020 Final Drive Motor Final Drive Assy Travel Motor Assy from wholesalers
    • Buy cheap R360 31NA-40020 Final Drive Motor Final Drive Assy Travel Motor Assy from wholesalers
    • Buy cheap R360 31NA-40020 Final Drive Motor Final Drive Assy Travel Motor Assy from wholesalers
    • Buy cheap R360 31NA-40020 Final Drive Motor Final Drive Assy Travel Motor Assy from wholesalers

    R360 31NA-40020 Final Drive Motor Final Drive Assy Travel Motor Assy

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : R360LC-7; R360LC-7A
    Price : Negotiable Price
    Payment Terms : L/C, T/T, Paypal, Trade Assurance
    Supply Ability : 1000 pieces/month
    Delivery Time : 2-3 days
    MOQ : 1pcs
    • Product Details
    • Company Profile

    R360 31NA-40020 Final Drive Motor Final Drive Assy Travel Motor Assy

    R360 31NA-40020 Final Drive Motor




    #Part NoPart NameQty.
    *31NA-40020TRAVEL MOTOR
    *-1,*-2
    1
    *31NA-40020BGTRAVEL MOTOR1
    *-1XKAH-00939MOTOR ASSY1
    022XKAH-00940C/B SPOOL1
    101XKAH-00941SHAFT-DRIVE1
    102XKAH-00942BEARING-ROLLER1
    103XKAH-00943BEARING-NEEDLE1
    107XKAH-00944RING-SNAP1
    S111XKAH-00945BLOCK-CYLINDER1
    113XKAH-00946BUSHING-SPHERICAL1
    114XKAH-00947SPRING-CYL9
    NS121XKAH-00948PISTON9
    NS122XKAH-00949SHOE9
    123XKAH-00950PLATE-SET1
    S131XKAH-00951PLATE-VALVE1
    201XKAH-00952PLATE-SWASH1
    S272XKAH-00953CASING-SHAFT1
    NS303XKAH-00954CASING A-VALVE1
    350XKAH-00955VALVE-RELIEF2
    351XKAH-00956VALVE-REDUCING2
    352XKAH-00957COVER2
    361XKAH-00958WASHER2
    362XKAH-00959SPRING-C/B2
    364XKAH-00960COVER-C/B2
    K365XKAH-00961O-RING2
    366XKAH-00962BOLT-SOCKET8
    401XKAH-00963BOLT-SOCKET2
    402XKAH-00964BOLT-SOCKET4
    435XKAH-00965RING-SNAP1
    S451XKAH-00187PIN-VALVE PLATE1
    461XKAH-00208PLUG-PT14
    464XKAH-00966PLUG-VP2
    K472XKAH-00967O-RING1
    K485XKAH-00035O-RING2
    K491XKAH-00968SEAL-OIL1
    NS502XKAH-00969PISTON1
    NS503XKAH-00153SHOE1
    504XKAH-00970BALL-PIVOT2
    K509XKAH-00035O-RING1
    531XKAH-00971SPOOL-TILTING1
    533XKAH-00972SPRING-TILTING1
    541XKAH-00973SEAT-2A1
    542XKAH-00974STOPPER1
    543XKAH-00199BALL-STEEL1
    545XKAH-00975ORIFICE1
    546XKAH-00976ORIFICE1
    K547XKAH-00261O-RING2
    564XKAH-00977PLUG2
    567XKAH-00136PLUG-VP4
    569XKAH-00710PLUG-RO2
    K570XKAH-00052O-RING6
    571XKAH-00978PLUG-RO1
    K572XKAH-00053O-RING1
    702XKAH-00979PISTON-BRAKE1
    703XKAH-00980ORIFICE1
    704XKAH-00981ORIFICE1
    705XKAH-00127SPRING-BRAKE14
    K707XKAH-00129O-RING1
    K708XKAH-00982O-RING1
    741XKAH-00983PLATE-SEPARATION1
    742XKAH-00984PLATE-FRICTION2
    801XKAH-00985NAME PLATE1
    802XKAH-00986RIVET SCREW2
    *-2@FUEL INJECTION PIPE & NOZZLE
    SEE 4130
    1
    KXKAH-01031SUB ASSY-SEAL
    SEE ILLUST
    1
    011XKAH-01030SUB ASSY-TILTING PISTON
    SEE ILLUST
    1
    012XKAH-01029SUB ASSY-VALVE CASING
    SEE ILLUST
    1
    013XKAH-01028SUB ASSY-CYLINDER
    SEE ILLUST
    1
    014XKAH-01027SUB ASSY-PISTON
    SEE ILLUST
    1

    Production Description


    Brand
    Belparts
    Part Number
    31NA-40020;31NA-40020BG
    Spare Parts Name
    Excavator Travel Motor Assy
    Model
    R360LC-7; R360LC-7A
    Quality
    Brand New
    Warranty
    12 Months
    MOQ
    1pcs
    Delivery Terms
    After payment 3-7days
    Payment Terms
    L/C, T/T, Paypal, Trade Assurance


    FAQ


    1. If I only know the excavator model, but can not offer parts No., what should I do ?
    If possible, you can send us pictures of old products, nameplate or the size for reference.


    2. What is the warranty of the parts after I purchased?
    The warranty is 6/12 Months based on the item details.


    3. How can I pay the order?
    We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.


    4. When will get the items after I place order?
    Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.


    5. How can I do if there is something wrong with the items?
    First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.


    6. What is your main products ?
    We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
