    Belparts Swing Gearbox 1st 2nd Carrier Assembly 206-26-71480 PC270-7 PC220-7 Travel For Komatsu Planetary

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : PC270-7 PC220-7
    Price : Negotiable price
    Payment Terms : T/T, Paypal and Trade Assurance
    Supply Ability : 1000pieces
    Delivery Time : 1-5days
    • Product Details
    • Company Profile

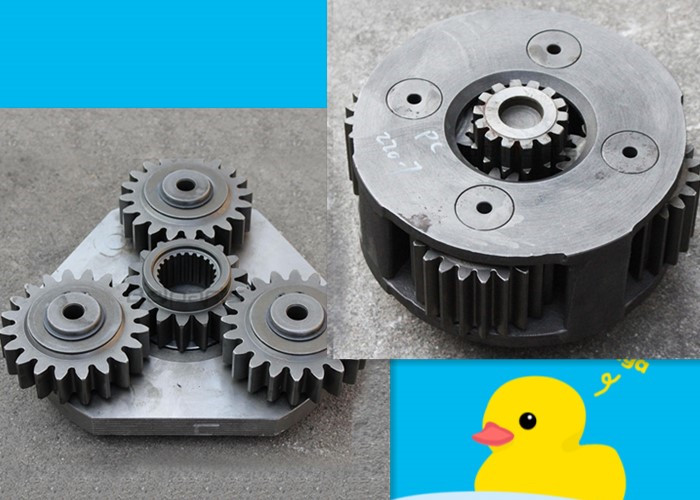

    Belparts Swing Gearbox 1st 2nd Carrier Assembly 206-26-71480 PC270-7 PC220-7 Travel For Komatsu Planetary

    Belparts Swing Gearbox 1st 2nd carrier Assembly 206-26-71480 PC270-7 PC220-7 Travel for Komatsu Planetary

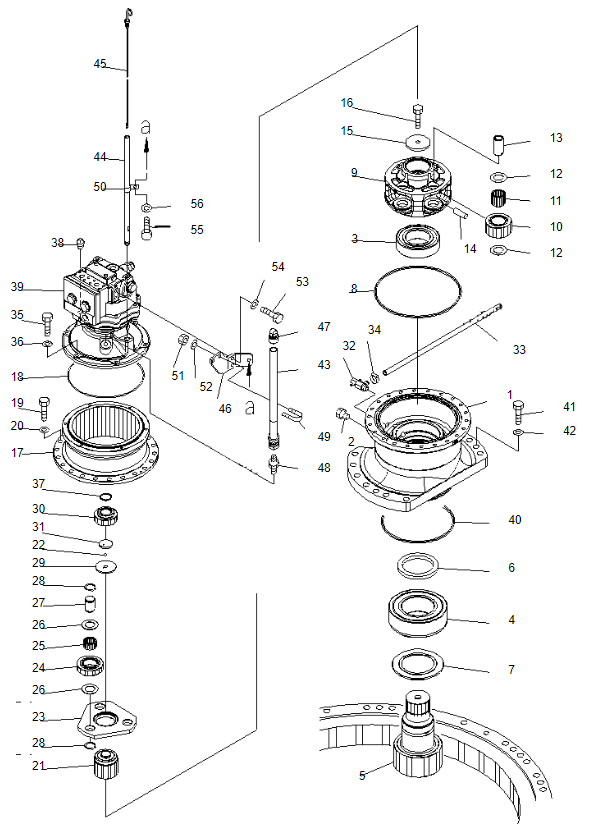

    Parts scheme

    List of spare parts


    #Part NoPart NameQty.Remark
    1206-26-714901
    207029-00000VALVE, RELIEF1
    320Y-26-22330Bearing1
    4206-26-71240Bearing1
    5206-26-71460Shaft1
    607012-00115SEAL,OIL1
    7206-26-71310Spacer1
    807000-15310O-RING,FLANGE1
    9206-26-71480Carrier1
    10206-26-71440Gear4
    1122U-26-21320Bearing8
    1122U-26-21330Bearing8
    12206-26-71520THRUST WASHER8
    13206-26-71510Pin4
    1420Y-26-21330Pin4
    1520Y-26-21240Plate1
    16112-32-11211BOLT? SHOE (Y0320-K1)1
    17206-26-71452Gear1
    17206-26-71450Gear1
    1820K-22-11190O-ring1
    1901010-81440CAPSCREW22
    2001643-31445WASHER,(FOR QUICK SHIFT) (MITSUBISHI)22
    21206-26-71430Gear1
    2204260-01270BALL,(-40 DEG. SPEC.)1
    23206-26-71470Carrier1
    24206-26-71420Gear3
    2520Y-27-22210Bearing3
    2622U-26-21230WASHER,THRUST6
    27206-26-71210Pin3
    2804064-03515RING,BACK-UP6
    29206-26-71350HOLDER1
    30206-26-71410Gear1
    31206-26-71340Plate1
    32195-03-13241VALVE,WATER DRAIN1
    3307270-21560Tube1
    3407281-00197CLAMP,(WITH PRE-FUEL FILTER)1
    3501010-81035BOLT,(F4320-52A0 -5 )6
    3601643-51032WASHER, (WITHOUT EMERGENCY STEERING)6
    3722U-26-21280Ring1
    3807043-00312PLUG,(FOR SHIPPING) (NOT SHOWN)1
    39(706-7G-01040)MOTOR ASS'Y1
    4007000-15250O-RING (KIT)1
    4101010-82070Bolt14
    4201643-32060FLAT WASHER - M20 (HARDENED)14
    4320Y-26-31410Tube1
    4420Y-26-31420Filler1
    4520Y-26-31430GAUGE1
    4620Y-26-31441Bracket1
    4722U-26-21460Cap1
    4807238-10630Connector1
    4907283-32738U-BOLT, L.H. TUBE CLAMPING1
    5004434-51710CLIP,SEE FIG. K4010-05A01
    5101597-01009NUT,(FOR JAPAN)2
    5201643-31032WASHER,(WITH AUTO EMERGENCY STEERING)2
    5301010-81030BOLT,(WITH BODY POSITIONER)2
    5401643-31032WASHER,(WITH AUTO EMERGENCY STEERING)2
    5501010-81025BOLT,(FOR CANVAS CANOPY?HEAD GUARD)1
    5601643-31032WASHER,(WITH AUTO EMERGENCY STEERING)1

    Supply Ability

    Supply Ability: 1000 Piece / Pieces per Month


    Packaging & Delivery

    Packaging Details Standard Export Wooden


    Port; Huangpu


    Lead Time

    Quantity(Pieces)1 - 1>1
    Est. Time(days)2To be negotiated

    Our advantages:

    Ø Strong part number database.

    If you can provide the right model and part number, we can supply the right product.


    Ø Professional and experienced salesperson.

    Our founder has been into this field for more than 7 years, with rich experiences


    Ø Strict and complete company rules.

    We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.


    Ø Good management system.

    No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.


    Ø Good service attitude.

    If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.


    FAQ


    1. Is small order available ?

    Yes , small order can accept .


    2. What's the shipping way ?

    By courier , air , or ship .


    3. What ' s package ? Can you supply the package according my requirement ?

    Export wooden carton , or we can customize it according to the requirement according to the customer's requirement .


    4. How can you guarantee the quality ?

    If you meet with quality problem , we promise to replace goods or return your funds .
