    Belparts Travel Gearbox For E330D2 Excavator Final Drive Toothbox 515-0073

    Belparts Travel Gearbox for E330D2 Excavator Final drive toothbox 515-0073

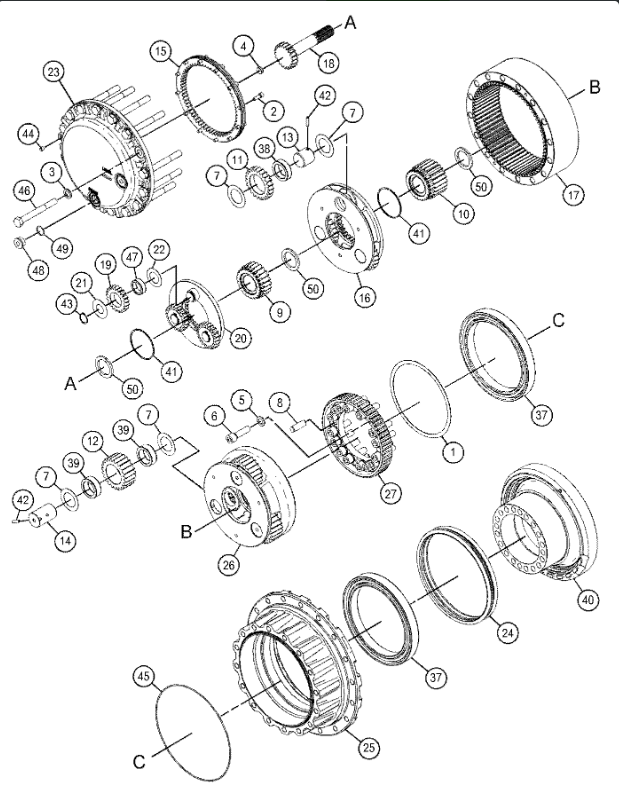

    Parts scheme


    List of spare parts


    Pos.Part NoQtyParts nameRemark
    1.7Y-0752 B[1]SHIM (0.8-MM THK)
    7Y-0753 B[1]SHIM (1-MM THK)
    7Y-0754 B[1]SHIM (1.6-MM THK)
    267-6863 B[1]SHIM (0.75-MM THK)
    267-6864 B[1]SHIM (0.85-MM THK)
    267-6865 B[1]SHIM (0.9-MM THK)
    267-6866 B[1]SHIM (0.95-MM THK)
    267-6867 B[1]SHIM (1.2-MM THK)
    267-6868 B[1]SHIM (1.4-MM THK)
    267-6869 B[1]SHIM (1.8-MM THK)
    267-6870 B[1]SHIM (2-MM THK)
    267-6871 B[1]SHIM (2.3-MM THK)
    4.094-0578 B[1]PLATE (8-MM THK)
    094-0579 B[1]PLATE (9-MM THK)
    094-0580 B[1]PLATE (10-MM THK)
    7.094-1528[12]WASHER (53X84X1-MM THK)
    8.114-1540[4]PIN-DOWEL
    9.169-5589[1]GEAR-SUN (24-TEETH)
    10.169-5590[1]GEAR-SUN (24-TEETH)
    11.169-5592[3]GEAR-PLANETARY (23-TEETH)
    12.169-5593[3]GEAR-PLANETARY (23-TEETH)
    13.169-5601[3]SHAFT-PLANETARY
    14.169-5602[3]SHAFT-PLANETARY
    15.171-9387[1]GEAR-RING (64-TEETH)
    16.191-2571[1]CARRIER-PLANETARY
    17.191-2676[1]GEAR-RING (72-TEETH)
    18.191-2683[1]GEAR-SUN (20-TEETH)
    19.191-2684[3]GEAR-PLANETARY (21-TEETH)
    20.191-2686[1]CARRIER AS
    21.191-2689[3]WASHER (34X70X1-MM THK)
    22.191-2690[3]WASHER (42.3X70X1-MM THK)
    23.199-4503[1]COVER
    24.207-1571[1]SEAL GP-DUO-CONE
    214-3570[2]RING-TORIC
    25.267-6798[1]HOUSING
    26.267-6799[1]CARRIER-PLANETARY
    27.267-6800[1]GEAR-COUPLING
    37.333-2914[2]BALL BEARING
    38.333-2916[3]BEARING AS
    39.333-2917[6]BEARING AS
    40.452-3516[1]HOUSING-MOTOR
    41.093-1731[2]RING-RETAINING
    42.095-0891[6]PIN-SPRING
    43.096-0433[3]RING-RETAINING
    44.096-3216 M[2]SETSCREW-SOCKET (M12X1.75X12-MM)
    45.171-9298[1]SEAL-O-RING
    46.179-8733 M[16]BOLT (M20X2.5X170-MM)
    47.296-6248[3]BEARING AS-ROLLER
    48.3E-2338[2]PLUG-PIPE
    49.7M-8485[2]SEAL-O-RING
    50.7Y-0595[3]SPACER (58X79.6X6-MM THK)
    51.7Y-5217 M[16]BOLT-SOCKET HEAD (M20X2.5X70-MM)
    52.8T-3282[16]WASHER-HARD (22X35X3.5-MM THK)
    53.451-2176[16]WASHER-HARD (22X35X3.5-MM THK)
    54.101-7404 M[12]BOLT-SOCKET HEAD (M10X1.5X30-MM)
    1U-8846 BFSEALANT-GASKET
    BUSE AS REQUIRED
    FNOT SHOWN
    MMETRIC PART

    Product Description


    AppliionExcavator
    QualityHigh Guarantee
    ModelE330D2
    PackageStandard Packing at Normal
    Warranty1 Year
    Payment termT/T,, PayPal, Trade Assurance
    Delivery2 days after the payment received
    Shipmentby sea, by air, by express or as required

    Attend the show

    Belparts Travel Gearbox For E330D2 Excavator Final Drive Toothbox 515-0073

    FAQ

    1 . If I only know the excavator model, but can not offer parts No., what should I do ?
    If possible, you can send us pictures of old products, nameplate or the size for reference.


    2 . What is the warranty of the parts after I purchased?
    The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.


    3 . How can I pay the order?
    You can finish the payment by T/T,Western Union,Paypal etc.


    4 . When will get the items after I place order?
    Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .


    5 . How can I do if there is something wrong with the items?
    First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.


    6 . What is your main products ?
    Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
