Excavator travel motor final drive DX255LC K1011413A hydraulic motors for doosan
Production Description
| Company Name | Guangzhou Belparts Engineering Machinery LTD. |
| Brand | Doosan |
| Spare Parts Name | Hydraulic final drive |
| Model | DX255LC |
| Part number | K1011413A |
| Warranty | 12 Months |
| MOQ | 1pcs |
| Delivery Terms | After payment 3-7days |
| Payment Terms | L/C, T/T, Paypal, Trade Assurance |

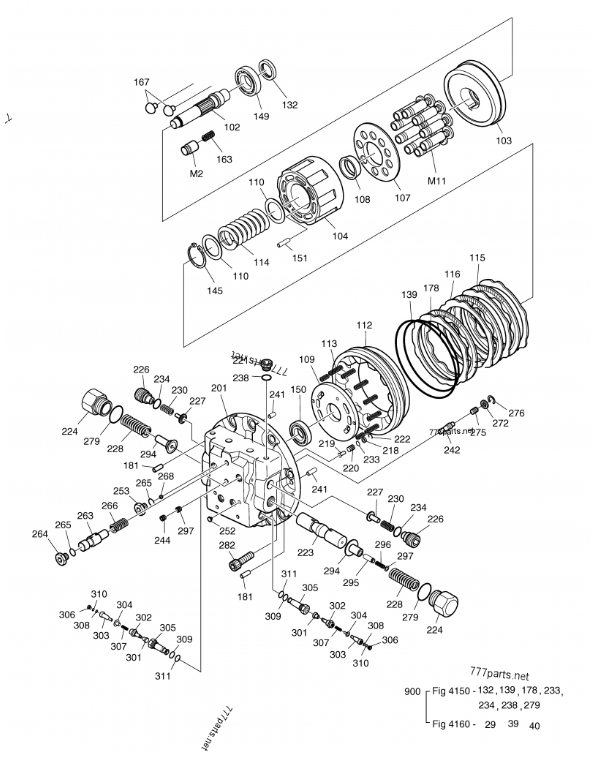

List of spare parts
| # | Part No | Part Name | Comment | Qty. | Price request |
| - | K1011413A | DEVICE, TRAVEL | 321 kg | 2 | |
| RL | K9004992 | REAR FLANGE ASS'Y | | 1 | |
| RL1 | K9004993 | KIT, REAR FLANGE | 31 kg / 330*330*200 | 1 | |
| 201 | *NA00460 | FLANGE, REAR | | 1 | |
| 223 | *NA01176 | SPOOL, MAIN | HE4D01720E | 1 | |
| RL2 | 1.416-00026 | STOPPER ASS'Y | | 2 | |
| 294 | *NA01233 | STOPPER | | 1 | |
| 295 | *NA01176 | SPOOL, MAIN | HE4D01720E | 1 | |
| 296 | *NA01182 | SPRING | SIS | 1 | |
| 224 | 1.181-00059 | PLUG, FOR MAIN | | 2 | |
| 228 | 1.131-00058 | SPRING, FOR MAIN | | 2 | |
| 279 | S8000321 | O-RING | | 2 | |
| 226 | 1.181-00067 | PLUG, CHECK | | 2 | |
| 227 | 1.420-00013 | VALVE, CHECK | | 2 | |
| 230 | 1.129-00006 | SPRING, CHECK | | 2 | |
| 234 | S8002731 | O-RING | | 2 | |
| 221 | 2181-1890D4 | PLUG, RECHECK | PF1/2 | 1 | |
| 238 | S8000181 | O-RING | 1BP18 | 1 | |
| 252 | 2181-1116D2 | PLUG, RECHECK | | 2 | |
| 253 | 2181-1890D2 | PLUG, SP | PF1/4 | 2 | |
| 244 | 2181-1116D1 | PLUG, RECHECK | 97123-01111 | 5 | |
| 268 | S6250182 | BALL, STEEL | | 2 | |
| 242 | 1.420-00014 | VALVE, REDUCING | | 1 | |
| 272 | 1.427-00031 | SEAT, VALVE REDUCING | | 1 | |
| 276 | 1.115-00141 | RING, REDUCING | | 1 | |
| 275 | 1.131-00062 | SPRING, REDUCING VALVE | | 1 | |
| 218 | 1.427-00029 | VALVE, SEAT T-TYPE | | 1 | |
| 219 | 1.420-00009 | VALVE, T-TYPE | | 1 | |
| 220 | 1.131-00041 | SPRING, T-TYPE | | 1 | |
| 222 | 1.115-00139 | RING, T-TYPE | 100A2022-00 | 1 | |
| 233 | S8000091 | O-RING | 1BP9 | 1 | |
| 263 | 422-00031 | VALVE, TWO SPEED | | 1 | |
| 264 | K9001047 | PLUG | | 1 | |
| 265 | S8000111 | O-RING | 1BP11 | 3 | |
| 266 | 1.131-00099 | SPRING, TWO SPEED | | 1 | |
| 241 | S5700891 | PIN, PARALLEL | | 2 | |
| 282 | S2221471 | BOLT, HEX SOCKET | | 9 | |
| 297 | 1.415-00005 | ORIFICE | | 1 | |
| M | K9004999 | MOTOR PART | | 1 | |
| M1 | 1.441-00291 | KIT, CYL'D BLOCK & PISTON | 10 kg | 1 | |
| 104 | *NA00073 | BLOCK, CYL'D | | 1 | |
| 110 | 1.114-00305 | WASHER | | 2 | |
| 114 | 1.129-00019 | SPRING, FOR CYL'D | | 1 | |
| 145 | S6510700 | RING, RETAINING | | 1 | |
| M11 | 1.409-00231 | PISTON ASS'Y | 3 kg | 1 SET | |
| 151 | 1.109-00135 | BEARING, ROLLER | | 6 | |
| 107 | 1.412-00093 | PLATE, RETAINER | | 1 | |
| 108 | 1.148-00016 | BALL, THRUST | | 1 | |
| M2 | K9005000 | PISTON ASS'Y | | 1 | |
| 163 | 1.131-00042 | SPRING | | 1 | |
| 102 | 1.405-00022 | SHAFT, MAIN | 4 kg | 1 | |
| 103 | K9005001 | PLATE, SWASH | 5 kg | 1 | |
| 109 | 1.412-00203 | PLATE, TIMING | 1 kg | 1 | |
| 115 | 1.412-00061 | PLATE, FRICTION | | 3 | |
| 116 | 1.412-00072 | PLATE, MATING | | 4 | |
| 112 | K9005002 | PISTON, PARKING | 5 kg | 1 | |
| 113 | 1.131-00055 | SPRING, P/PISTON | | 9 | |
| 132 | 1.180-00631 | SEAL, OIL | | 1 | |
| 149 | 1.109-00147 | BEARING, BALL | | 1 | |
| 150 | 1.109-00026 | BEARING, BALL | | 1 | |
| 139 | S8002101 | O-RING | | 1 | |
| 178 | S8011951 | O-RING | | 1 | |
| 181 | S5701242 | PIN, PARALLEL | | 2 | |
| 167 | 1.540-00006 | PIVOT | | 2 | |
| R1 | K9005003 | RELIEF VALVE ASS'Y | HE3D02505C | 2 | |
| 301 | 1.429-00037 | SEAT | | 1 | |
| 302 | *NA00890 | PLUNGER | HE4D02504B | 1 | |
| 303 | *NA00996 | ROD | SIS | 1 | |
| 304 | *NA00796 | PISTON | SIS | 1 | |
| 305 | *NA00079 | BODY | HE4D01468C | 1 | |
| 306 | *NA00843 | PLUG | SIS | 1 | |
| 307 | *NA01182 | SPRING | SIS | 1 | |
| 308 | *NA01133 | SHIM | 1.10 mm | 1 | |
| 309 | S8000181 | O-RING | 1BP18 | 1 | |
| 310 | S8000181 | O-RING | 1BP18 | 1 | |
| 311 | S8060181 | BACK UP RING(GN04080A0)JI | 1BP18 | 1 | |
| 900 | 2401-9082K | O-RING KIT, TRAVEL MOTOR | | 1 KIT | |
We can supply huge stock for excavator spare parts(Various parts)
1) Engine parts:pison liner kits,main&con rod bearings,valves,cyclinder gasket kit,plunger/delivery valve,nozzle,cylinder block,cylinder head,crankshaft,camshaft,starting motor,oil/water/feed pump,fan blade,Turbocharger and so on.
2)Hydraulic parts:hydraulic pump assy,hydraulic pump parts(biock ass'y ,plate valve,guide retainer,retainer shoe,piston sub ass"y,cradle ass"y
3) Undercarriage parts:Chassis part,track link ass"y,track shoe,sprocket,track roller,carrier roller,front idler,bucket,Oil cylinder assy and so on.
4) Cooling system:radiator assy,oil cooker assy,shroud,aftercooler assy,condenser assy,water tank assy,air conditioner,air compressor assy and son on.
Hot Products
Advantages:
1. Original /OEM /After Market quality and competitive price.
2. Professional work team and quick service.
3. Strong and standard package.
4. Fast and safe delivery.
5. Long export experience
6. Wholesale price for Construction Machinery Spare Parts.
Factory
FAQ
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6. What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
