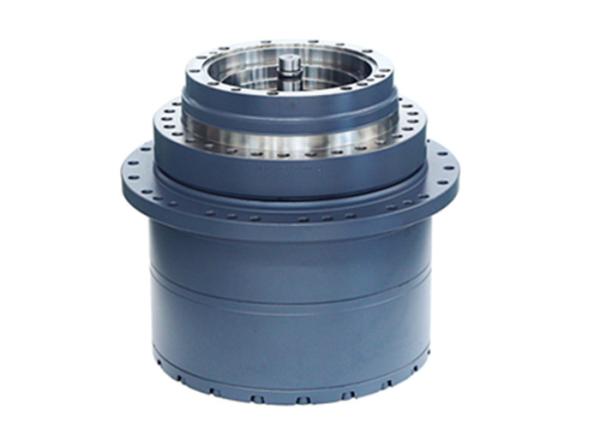

    DH220-5 DH220-7 EC210 Travel Gearbox Planetary 170402-0000 VOE14528733

    Ask Lasest Price
    Brand Name : Belparts
    Model Number : DH220-7 DH220-5 EC210 SY235 LG200
    Price : Negotiated price
    Payment Terms : T/T, Western Union, PayPal
    Supply Ability : 500 pieces per month
    Delivery Time : 1-2 days
    • Product Details
    • Company Profile

    DH220-5 DH220-7 EC210 Travel Gearbox Planetary 170402-0000 VOE14528733

    DH220-5 DH220-7 EC210 Travel Gearbox Planetary 170402-0000 VOE14528733

    Product Description

    AppliionExcavator
    Part nameDH220-7 DH220-5 EC210 SY235 LG200 LG225 LG925 travel gearbox
    Part number170402-0000 VOE14528733 SA7117-30050
    ModelDH220-7 DH220-5 EC210 SY235 LG200 LG225 LG925
    MOQ1PC
    Warranty6months
    Payment termT/T, Western union, PayPal
    Delivery1 days after the payment received
    Shipmentby sea, by air, by express or as required

    1.What parameter you need to send us :

    The part number and the photo of your old gearbox . If the common type , we can check it directly .

    We have been the factory agent this year , so the price of our parts are better than other suppliers .

    Our products are developed according to the genuine product information , It's perfectly replaceable . That means you can use less money to buy a perfect replacement product .

    Our advantages:

    1 . Strong part number system

    If you can provide the right model and part number, we can check with the informations you sent me and supply the right product .

    2 . Professional and experienced salesperson .

    Our founder has been into this field for more than 7 years , with rich experiences.We will conduct professional knowledge training and assessment for sales staff every month .

    3 . Strict and complete company rules .

    We will try our best to meet customer’s delivery time . Before delivery, we must verify the part number or pictures of products one by one , to make sure that customers can receive high-quality and right-quantity goods .

    4 . Good management system.

    No matter how big or small order , as long as customers place the order , we will provide exporting service free for charge .

    5 . Good service attitude .

    If the customer has any questions about the product , In our receiving and knowing the situation , we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable , we will try out best to make them satisfied .

    DH220-5 DH220-7 EC210 Travel Gearbox Planetary 170402-0000 VOE14528733

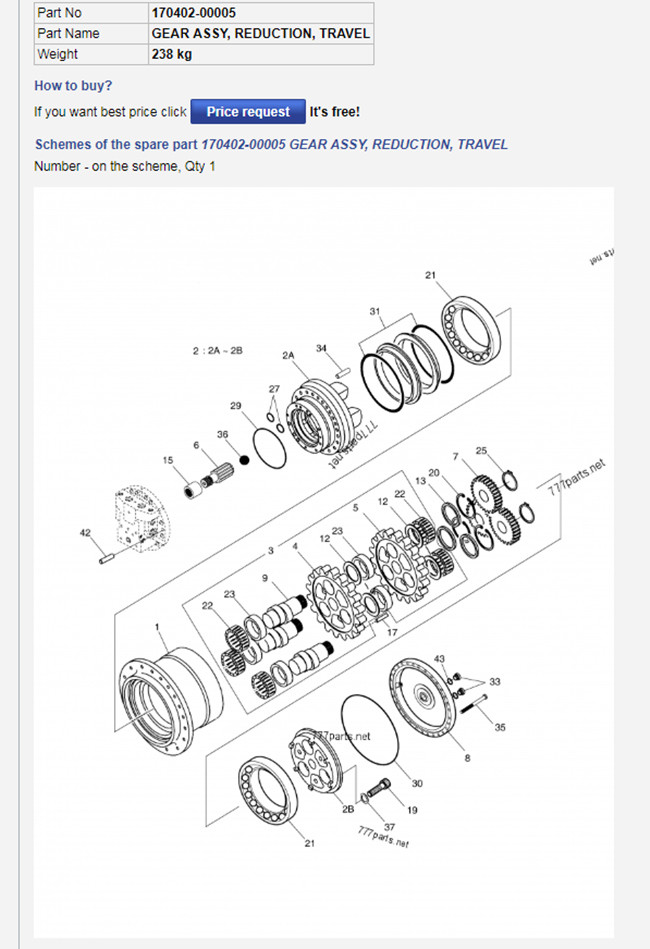

    List of spare parts


    #Part NoPart NameCommentQty.
    -170402-00005GEAR ASSY, REDUCTION, TRAVEL238 kg1
    1900122-00038HUB1
    21.405-00113SPINDLE ASSY59 kg / 420*420*3401
    2A1.405-00104SPINDLE1
    2B1.229-00010FLANGE, HOLDER1
    19S2234071BOLT, SOCKET M24X703
    341.123-00054PIN, PARALLEL6
    371.114-00463WASHER, PLAIN3
    3723B1104-00RV GEAR ASS'Y1
    4*NA01035RV GEAR(A)1
    5*NA01036RV GEAR(B)1
    91.405-00045CRANK, SHAFT3 kg3
    121.114-00244SPACER6
    221.109-00128BEARING, TAPER ROLLER1 kg6
    231.109-00052BEARING, NEEDLE1 kg6
    6723B1006-00INPUT GEAR1 kg1
    7723B1107-00SPUR GEAR KIT8 kg1
    81.430-00031COVER13 kg1
    131.540-00005PIECE, DISTANCE3
    151.414-00009COUPLING1
    171.123-00038PIN24
    20S6510950RING, SNAP3
    211.109-00004BEARING, ANGULAR BALL5 kg2
    25S6500400RING, RETAINING3
    27S8000081O-RING2
    29S8010230O-RING1
    301.180-00156RING, O1
    31401111-00021SEAL, FLOATING2 kg1 SET
    332181-1890D4PLUG, RECHECKPF1/23
    35S2212271BOLT, SOCKET M10X3012
    36S6250200BALL, STELL1
    421.123-00053PIN, PARALLEL2
    43S8000181O-RING1BP183

    FAQ
    1 . If I only know the excavator model, but can not offer parts No., what should I do ?

    If possible, you can send us pictures of old products, nameplate or the size for checking .


    2 . What is the warranty of the parts ?
    The warranty is 6 or 12 Months based on the item details . The genuine parts we don't have the warranty for it,but we can make sure it is genuine brand 100% .


    3 . What kind of payment terms can I choose ?
    You can choose T/T,Western Union,Paypal etc.


    4 . When will the delivery be arranged after the payment
    After we received the payment , we will arrange the shipment within 24 hours ;


    5 . How can I do if there is something wrong with the items?
    First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.


    6 . What is your main products ?
    Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can send it to us . We will try our best to find the parts what you need.
