SK295-8 SK295-9 SK350-8 SK330-8 Kobelco Excavator Parts Swing Motor
LC15V00022F2 LC15V00022F1 M5X180CHB
Kobelco SK295-8 SK295-9 SK350-8 SK330-8 swing motor
Description: Swing motor
Model: M5X180CHB
Appliion: SK330-8
Part No.: LC15V00022F1 LC15V00022F2
Brand:
1 Different brands final drive, travel motor, Swing motor and other
inner parts;
2 Fast delivery & High quality;
3 Factory direct price ;
We can supply you all kinds of spare parts as following:
1) Hydraulic Spare Parts
Main Valve, Main Pump, Solenoid Valve, Boom/Arm/Bucket Cylinder,
Final Drive, Travel Motor, Swing Machinery, Swing Motor…
2) Engine Spare Parts
Turbocharger, Oil Pump, Fuel Injection Pump, Water Pump,
Alternator, Starting Motor…
3) Fuel Tank And Related Parts
Strainer, Sensor, Fuel Tank, Water Separator,…
4) Operator’S Cab Spare Parts
Cab, Monitor, Controller, Engine Controller, Seat, Air Conditioner,
Air Compressor…
5) Work Equipment
Tube, Cylinder, Arm, Bucket Cylinder, Link, Bucket Link, Bushing, Bucket, Tooth, Adapter Cutter…
6) Electrical System
Cable, Battery, Alternator, Light, Relay, Monitor, Starting Motor,
Air Conditioner, Controller…
7) Cooling System
Radiator Core, Oil Cooler, After Cooler, Condenser, Air Cooler,
Radiator…
8) Undercarriage Spare Parts
Track Shoe, Track Link, Track Roller, Carrier Roller, Sprocket,
Front Idler
Machinery model available:
EX:EX200-2,EX220-2,EX120-5, EX200-5,EX220-5,EX400-5,ZAXIS 200-3, ZAXIS
210-3, ZAXIS 240-3, ZAXIS 270-3, ZAXIS 330-3, ZAXIS 360-3 ZAXIS
110, ZAXIS 120, ZX200-6
: Sk200-3, sk200-5, sk135rs, sk70rs, sk60,sk120-5, sk200-8, sk260-8,
sk130-8, sk200-6e, sk210-6e, sk160
Kato:HD80R, HD820-5, HD1023, HD1430, HD700-7,HD1430-7, HD1250-7, HD450-7
:EC140B, EC210B, EC240B, EC290B, EC360B, EC460B
Daewoo:DH215-5, DH200-5-7, DH150LC-7, DH258LC-7
SUMITOMO: SH120A2/A3,SH200A2/A3, SH210A5, SH240A3, SH360A5
: r1107-7, r160-7, r215-7, r225-7, r225lc-7, r350-7, r110-9, r215-9,
r275lc-9
Kubota: kx155, kx135, kx161-3
PC: pc60-6, pc200-6, pc220-6, pc200-7,pc220-7, pc360-7, pc200-8,
pc210-8, pc240-8
C-A-T: E320, E325C, E315C, E330C, E315D, E320D, E325D, E330D, E360D,
E70B, E120B, E200B, E320B, E330B
Delivery:
1) International Express: Such as DHL,TNT, FEDEX and so on.
2)Air transportation: For goods above 45KG, it is economic choice for
customers.
3)By sea: Heavy cargo by container transport.

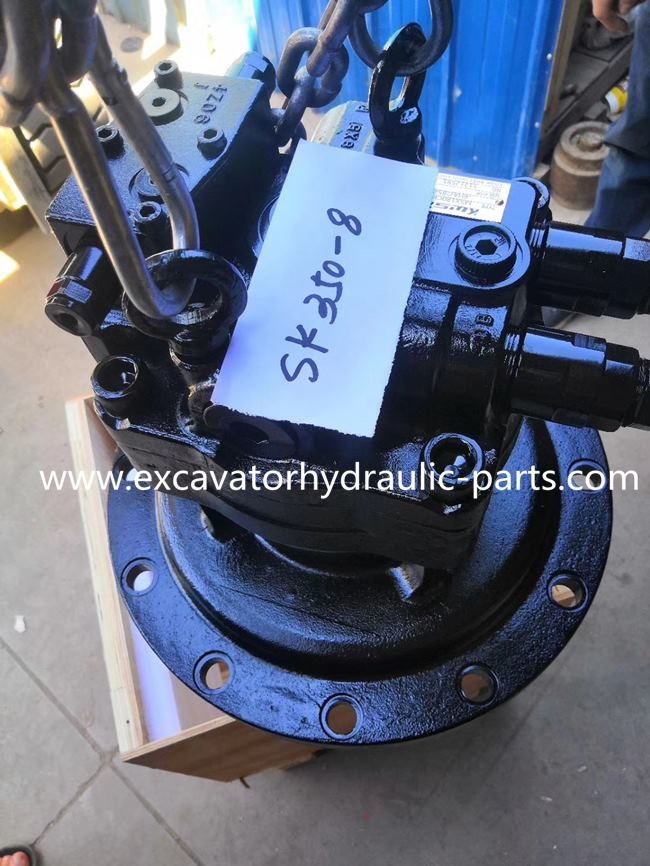

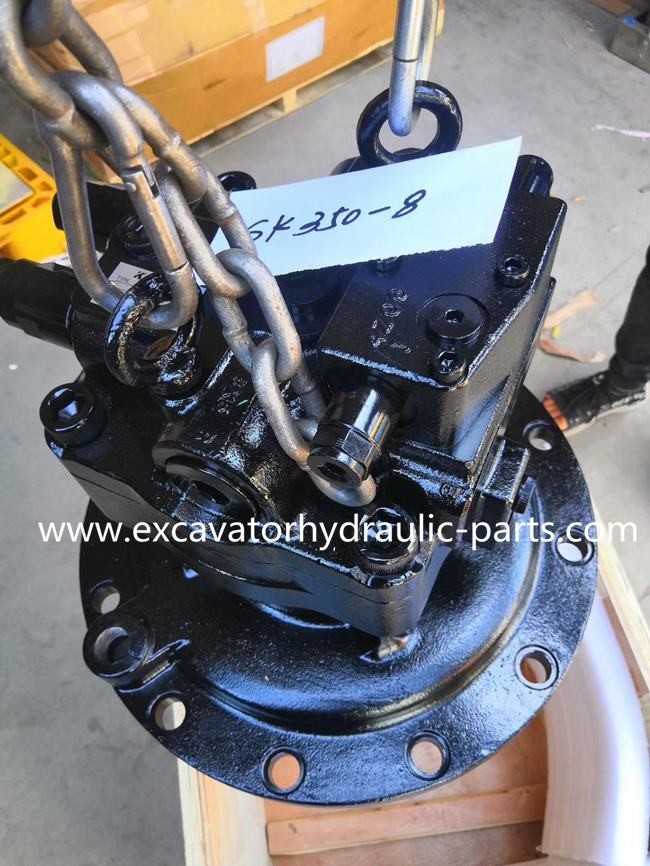

Kobelco SK295-8 SK295-9 SK350-8 SK330-8 swing motor Picture
Compatible models Kobelco: LC15V00022F1:
HEAVY EQUIPMENT SK295-8 SK295-9 SK350-8 Kobelco
Parts on group (SK350-8) - ACERA MARK 8 EXCAVATOR - TIER 3 ASN
YC08U (NA) (10/06-12/12):
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC15V00022F1 | [1] | HYDRAULIC MOTOR | KOB Superseded by part number: LC15V00022F2 |
| 51. | YN22V00014FB | [2] | VALVE | KOB VALVE ASSY,RELIEF (SWING) SEE(HC325) |
| 52. | YN20V00004F1 | [1] | VALVE | KOB SEE(HC315) |
| 101. | LB15V00011S101 | [1] | SHAFT | KOB |
| 111. | LB15V00011S111 | [1] | CYLINDER | KOB |
| 114. | EZ15V00021S114 | [1] | SPRING | KOB |
| 121. | NSS | [9] | NOT SOLD SEPARAT | CON PISTON |
| 122. | NSS | [9] | NOT SOLD SEPARAT | CON SHOE |
| 123. | EZ15V00021S123 | [1] | PLATE | KOB |
| 124. | LB15V00011S124 | [1] | PLATE | KOB SHOE |
| 131. | LB15V00011S131 | [1] | PLATE | KOB |
| 301. | LC15V00022S301 | [1] | | KOB |
| 303. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 351. | LC15V00003S351 | [2] | PLUNGER | KOB |
| 355. | LC15V00003S355 | [2] | SPRING | KOB |
| 390. | YB15V00003S390 | [1] | PLATE | KOB NAME PLATE |
| 391. | 2437U407S983 | [2] | RIVET | KOB |
| 401. | ZS23C20045 | [4] | CAP,Hex Socket Head, M20 x 45mm | KOB Screw -- M20x2.5x45mm |
| 443. | LB15V00011S443 | [1] | ROLLER BEARING | KOB ROLLER |
| 444. | LB15V00011S444 | [1] | ROLLER BEARING | KOB ROLLER Superseded by part number: LC15V00022S995 |
| 451. | NSS | [2] | NOT SOLD SEPARAT | CON PIN |
| 469. | LC15V00003S469 | [2] | PLUG | KOB |
| 472. | LB15V00011S987 | [1] | O-RING | KOB |
| 488. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB ID 33.70 ± 0.33 x OD 40mm |
| 491. | LC15V00022S491 | [1] | OIL SEAL | KOB OIL SEAL |
| 702. | LQ15V00001S015 | [1] | PISTON | KOB |
| 706. | 2441U785S706 | [1] | O-RING | KOB |
| 707. | 2441U741S706 | [1] | O-RING | KOB |
| 712. | LB15V00011S712 | [14] | SPRING | KOB |
| 742. | LB15V00011S742 | [3] | PLATE | KOB FRICTION |
| 743. | LB15V00011S743 | [4] | PLATE | KOB SEPARATOR |
| 984. | LC15V00022S984 | [1] | PLUG | KOB |
| 985. | LQ15V00001S985 | [1] | PLUG | KOB |
| 986. | YN15V00035S980 | [1] | PLUG | SM |
| 994. | ZE82T12000 | [1] | PLUG | KOB 3/4" PT |
| K. | LB15V00011R100 | [1] | REPAIR KIT | KOB CONSISTS OF ITEM 121X9, 122X9 Superseded by part number:
LC15V00022R400 |
| K. | LV15V00002R200 | [1] | REPAIR KIT | KOB CONSISTS OF ITEM 303X1, 451X2 |
Our advantage
1. High Quality
2. Competitive Price
3. Prompt Delivery
4. Best Service
FAQ
1: When will ship my order ?
Once we get confirmation of payment, we will try the best to ship
order within 24 hours "
2: How long to prepared the goods?
We have many stock for each iterm. so dont woride .we have enought
stock for u .
3: Which shipment you can supply?
By sea, by air or by express (DHL, FEDEX ,TNT,UPS,EMS)
4.How long does it take to clients address ?
The normal delivery time is 4-5 days .depending one which country u
are in .
5.How can i know my order it already shipping ?
When the goods shipping , i will email u for tracking number for
goods. if by sea or by air , i can offer bill of lading to u .
6.If i was not satisfied with the products, can i return goods ?
Yes . we offer exchanged and repair serve in the warranty time .
please contact us before u return
