31NA-10020

[1]

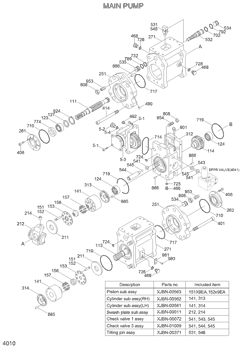

MAIN PUMP

TYPE 1

*.

31NA-10021

[1]

MAIN PUMP

TYPE 2

*-1.

@

[1]

MAIN PUMP UNIT

111.

XJBN-00998

[1]

SHAFT(F)-DRIVE

113.

XJBN-00999

[1]

SHAFT(R)-DRIVE

114.

XJBN-01000

[1]

GEAR(1)

123.

XJBN-00571

[2]

BEARING-ROLLER

124.

XJBN-00978

[2]

BEARING-NEEDLE

127.

XJBN-00019

[3]

SPACER-BEARING

NS141.

XJBN-00567

[2]

BLOCK-CYLINDER

NS151.

XJBN-00566

[18]

PISTON

NS151.

XJBN-00681

[18]

PISTON

TYPE 2

NS152.

XJBN-00005

[18]

SHOE

NS152.

XJBN-01385

[18]

SHOE

TYPE 2

153.

XJBN-00020

[2]

PLATE-SET

156.

XJBN-00564

[2]

BUSHING-SPHERICAL

157.

XJBN-00541

[18]

SPRING-CYLINDER

211.

XJBN-00023

[2]

PLATE-SHOE

S212.

XJBN-00012

[2]

PLATE-SWASH

S214.

XJBN-00013

[2]

BUSHING-TILTING

251.

XJBN-00560

[2]

SUPPORT-S.P.

261.

XJBN-00025

[1]

COVER(FR)-SEAL

263.

XJBN-00979

[1]

COVER(RR)-SEAL

271.

XJBN-00026

[2]

CASING-PUMP

271.

XJBN-01386

[2]

CASING-PUMP

TYPE 2

312.

XJBN-01001

[1]

BLOCK-VALVE

S313.

XJBN-00557

[1]

PLATE-VALVE(R)

S314.

XJBN-00556

[1]

PLATE-VALVE(L)

401.

XJBN-00028

[8]

SCREW

406.

XJBN-00355

[8]

SCREW

466.

XJBN-00356

[2]

PLUG

468.

XJBN-00357

[4]

PLUG

490.

XJBN-00032

[27]

PLUG

492.

XJBN-00234

[12]

PLUG

NS531.

XJBN-00369

[2]

PIN-TILTING

532.

XJBN-00033

[2]

PISTON-SERVO

534.

XJBN-00034

[2]

STOPPER(L)

535.

XJBN-00035

[2]

STOPPER(S)

NS541.

XJBN-00859

[4]

SEAT

NS543.

XJBN-00860

[2]

STOPPER

NS544.

XJBN-01002

[2]

STOPPER(2)

S545.

XJBN-00359

[4]

BALL-STEEL

NS548.

XJBN-00360

[2]

PIN-FEED BACK

702.

XJBN-00040

[2]

O-RING

710.

XJBN-00041

[2]

O-RING

714.

XJBN-01003

[1]

O-RING

717.

XJBN-00042

[2]

O-RING

719.

XJBN-00043

[2]

O-RING

724.

XJBN-00361

[16]

O-RING

725.

XJBN-00362

[6]

O-RING

728.

XJBN-00363

[4]

O-RING

732.

XJBN-00047

[2]

O-RING

774.

XJBN-00906

[1]

SEAL-OIL

774.

XJBN-01595

[1]

SEAL-OIL

TYPE 2

789.

XJBN-00049

[2]

RING-BACK UP

792.

XJBN-00050

[2]

RING-BACK UP

808.

XJBN-00364

[4]

NUT

824.

XJBN-00052

[2]

RING-SNAP

885.

XJBN-00053

[2]

PIN-2

886.

XJBN-00365

[4]

PIN-SPRING

901.

XJBN-00055

[2]

BOLT-EYE

953.

XJBN-00056

[2]

SCREW-SET

954.

XJBN-00057

[2]

SCREW-SET

981.

XJBN-00156

[1]

NAME PLATE

983.

XJBN-00341

[2]

PIN

*-2.

XJBN-01004

[2]

REGULATOR

SEE 4020

*-3.

XJBN-01005

[1]

GEAR PUMP

SEE 4030

*-4.

XJBN-00014

[1]

EPPR VALVE ASSY

SEE 4040

*-5.

XJBN-01006

[1]

PTO UNIT

5-1.

XJBN-01007

[8]

SCREW-HEX

5-2.

XJBN-00031

[1]

PLUG

5-3.

XJBN-01008

[1]

O-RING

5-4.

XJBN-00046

[1]

O-RING

S011.

XJBN-00563

[2]

PISTON ASSY

SEE ILLUST

S011.

XJBN-01382

[2]

PISTON ASSY

TYPE 2

S013.

XJBN-00562

[1]

CYLINDER ASSY-RH

SEE ILLUST

S014.

XJBN-00561

[1]

CYLINDER ASSY-LH

SEE ILLUST

S030.

XJBN-00011

[2]

SWASH PLATE ASSY

SEE ILLUST

S041.

XJBN-00072

[2]

CHECK VALVE ASSY 1

SEE ILLUST

S042.

XJBN-01009

[2]

CHECK VALVE ASSY 3

SEE ILLUST

S530.

XJBN-00371

[2]

TILTING PIN SUB ASSY

SEE ILLUST
